| Menşe yeri: | Çin |
|---|---|
| Marka adı: | BWT |
| Sertifika: | ISO9001 |

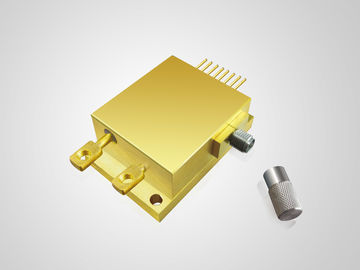

| Model numarası: | K808FANCA-15.00W |
| Min sipariş miktarı: | 1 Adet |
| Teslim süresi: | 4-8weeks |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 100.000 / Yıl |
| Vurgulamak: | mini lazer modülü,yüksek güçlü lazer modülü |
||
|---|---|---|---|
Features:
Customer options:
Applications:
| Specifications(25℃)
| Symbol
| Unit
| K808DAHRN-25.00W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 15 | - | - |
| Center Wavelength | λc | nm | 808±10 | |||
| Spectral Width (FWHM) | △λ | nm | - | 6 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 40 | - | |
| Threshold current | lth | A | - | 1.8 | - | |
| Operating current | lop | A | - | - | 11 | |
| Operating voltage | Vop | V | - | - | 4 | |
| Slope Efficiency | η | W/A | - | 1.8 | - | |
| Fiber Data
| Core diameter | Dcore | μm | - | 400 | - |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber Connector | - | - | - | SMA905 | - | |
| Thermistor | - | Rt | (K Ω)/β(25℃) | 10±3%/3477 | ||
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
| PD Data | Current | Imo | μA | 200 | - | 2000 |
| Thermistor | - | Rt | (K Ω)/β(25℃) | - | 10±3%/3477 | - |
| Aiming Beam Data | Output Power | Pa | mW | - | 2 | - |
| Wavelength | la | nm | 635±10 | |||
| Voltage | Va | V | - | 5 | - | |
